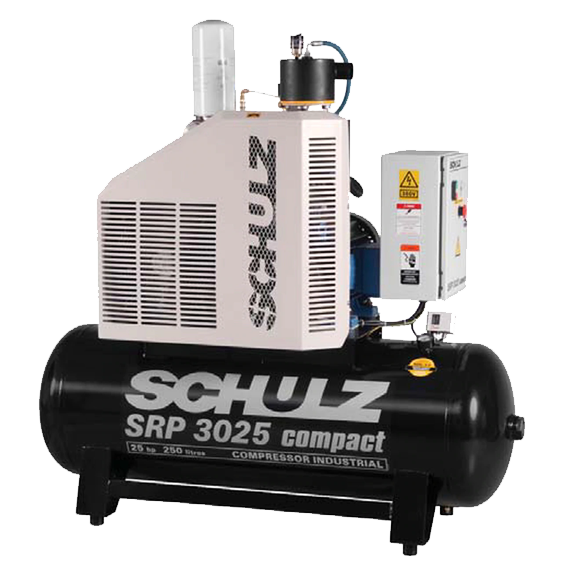

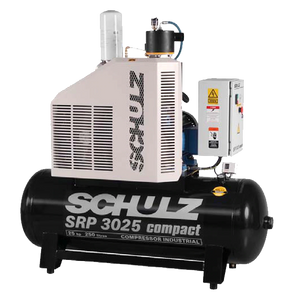

SCHULZ ROTARY SCREW SRP-3025 COMPACT - 25HP - 80 GAL - THREE PHASE 230/460v AIR COMPRESSOR 970.2840-0
The Compact Line was developed with products from 7.5 to 40 hp for companies that are looking for a reliable operation and low investment. Designed opened without enclosures, these compressors can operate 24 hours continuous and offer compressed air with high efficiency. Their compact design allows installation in small places with easy access to all maintenance components. Furthermore, Compact Rotary Screws come with a simple electric starter control that saves time and money during installation and operation. Compact is the solution for those seeking an excellent cost x benefit ratio. Choose yours.
Model | SRP 3008 COMPACT-1 | SRP 3008 COMPACT-3 | SRP 3015 COMPACT II | SRP 3025 COMPACT | SRP 3040 COMPACT |
---|---|---|---|---|---|
Free Air @125 PSI (CFM) | 25 | 25 | 51 | 89 | 150 |
Voltage (V) | 230 | 208-230/460 | 208-230/460 | 208-230/460 | 208-230/460 |
Free Air @125 psi (l/min) | 722 | 722 | 1,444 | 2,510 | 4,247 |
Motor Power (kW) | 5.5 | 5.5 | 11 | 18 | 30 |
Noise Level (dbA) | 83 | 83 | 86 | 86 | 91 |
Tank Size (gal) | 60 | 60 | 60 | 80 | 120 |
Discharge Connection (in) | 1/2" | 1/2" | 3/4" | 3/4" | 1" |
Motor Power (hp) | 7.5 | 7.5 | 15 | 25 | 40 |
Maximum Operating Pressure (PSI) | 125 | 125 | 125 | 125 | 125 |
Code | 970.3890-0 | 970.3891-0 | 970.3454-0/F | 970.2840-0 | 970.3233-0 |
Factory Warranty:
2 years on the airend (with proper maintenance)
1 year on all the other components
*OPTIONAL 5 year warranty available - Additional requirements needed, contact Factory for more information
TEFC, IP55, degree of protection electric motors dislaxion class;
Automatic starters with phase and sequence failure detection;
Lubricated air-end;
Low maintenance costs;
Low oil consumption;
Coolers are on the top of the machine, improves heat recovery at customers facilities;
Thermostatic valve for working temperature control;
Load/partial load/unload control from SRP 3040 II up to SRP 3075;
Proportional control for SRP 3100 and SRP 3200;
Maximum ambient temperature 113 °F/45ºC;
Synthetic oil;
Y Starter with soft-starter (optional).
(MPN) Manufacturer Part Number - 970.2840-0
