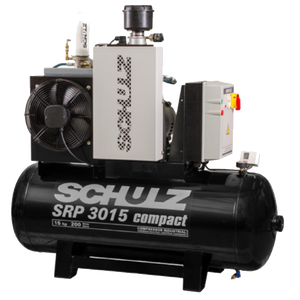

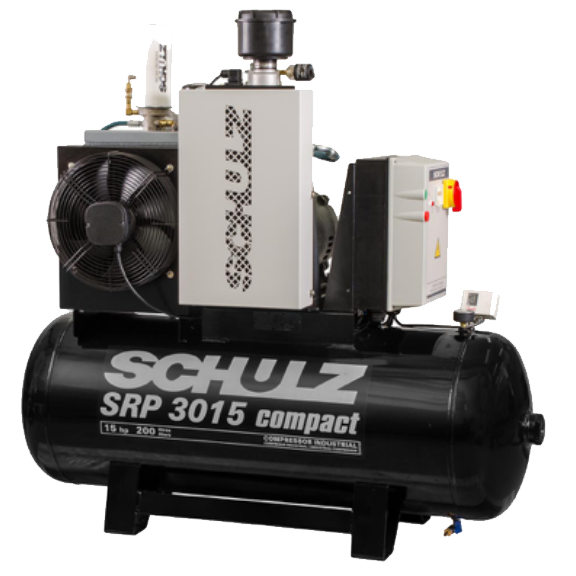

SCHULZ ROTARY SCREW SRP-3015 COMPACT - 15HP - 60 GAL - THREE PHASE 230\460v AIR COMPRESSOR 970.3454-0/F
The Compact Line was developed with products from 7.5 to 40 hp for companies looking for reliable operations and low investment. Designed opened without enclosures; these compressors can operate 24 hours continuously and offer compressed air with high efficiency. Their compact design allows installation in small places with easy access to all maintenance components. Compact Rotary Screws come with a simple electric starter control that saves time and money during installation and operation. The compact is the solution for those seeking an excellent cost x benefit ratio. Choose yours.

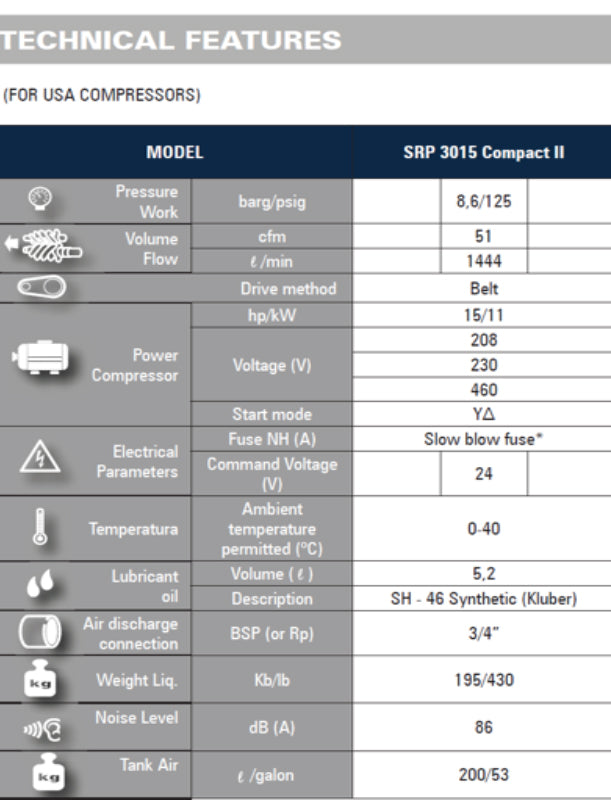

| Model | SRP 3008 COMPACT-1 | SRP 3008 COMPACT-3 | SRP 3015 COMPACT II | SRP 3025 COMPACT | SRP 3040 COMPACT |
|---|---|---|---|---|---|
| Free Air @125 PSI (CFM) | 25 | 25 | 51 | 89 | 150 |
| Voltage (V) | 230 | 208-230/460 | 208-230/460 | 208-230/460 | 208-230/460 |
| Free Air @125 psi (l/min) | 722 | 722 | 1,444 | 2,510 | 4,247 |
| Motor Power (kW) | 5.5 | 5.5 | 11 | 18 | 30 |
| Noise Level (dbA) | 83 | 83 | 86 | 86 | 91 |
| Tank Size (gal) | 60 | 60 | 60 | 80 | 120 |
| Discharge Connection (in) | 1/2" | 1/2" | 3/4" | 3/4" | 1" |
| Motor Power (hp) | 7.5 | 7.5 | 15 | 25 | 40 |
| Maximum Operating Pressure (PSI) | 125 | 125 | 125 | 125 | 125 |
| Code | 970.3890-0 | 970.3891-0 | 970.3454-0/F | 970.2840-0 | 970.3233-0 |
Factory Warranty:
2 years on the airend (with proper maintenance)
1 year on all the other components
*OPTIONAL 5 year warranty available - Additional requirements needed, contact Factory for more information
TEFC, IP55, degree of protection electric motors;
Automatic starters with phase and sequence failure detection;
Lubricated air-end;
Low maintenance costs;
Low oil consumption;
Coolers are on the top of the machine, improves heat recovery at customer’s facilities;
Modern design products;
High-efficiency electric motors;
Thermostatic valve for working temperature control;
24V Command panel.
(MPN) Manufacturer Part Number - 970.3454-0/F
