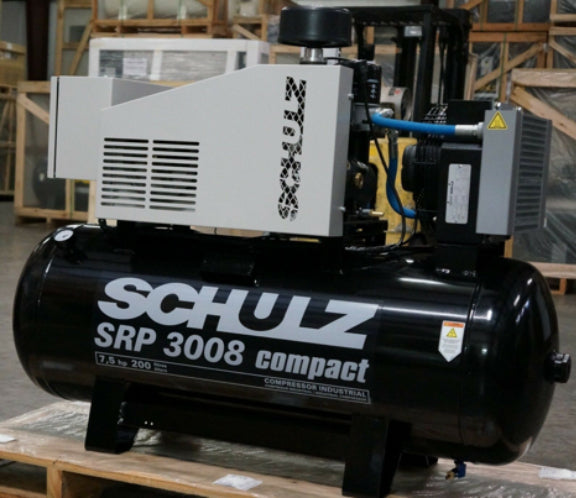

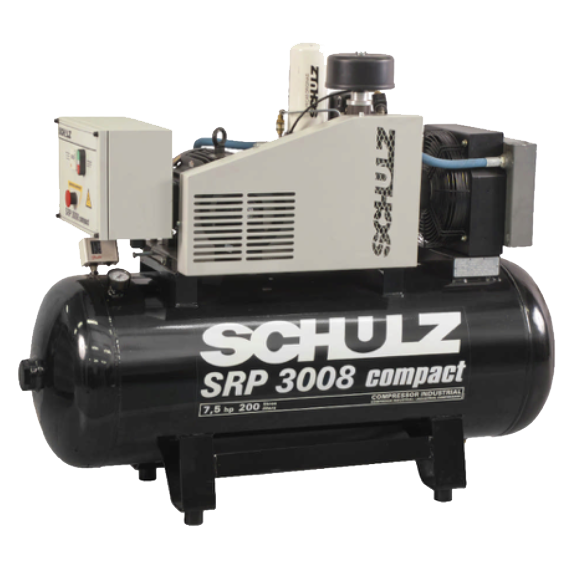

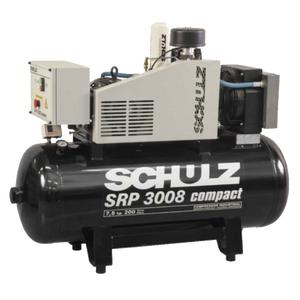

SCHULZ ROTARY SCREW SRP-3008 COMPACT - 7.5HP - 60 GAL / SINGLE PHASE (970.3890-0) OR THREE PHASE (970.3891-0)
SCHULZ ROTARY SCREW SRP-3008 COMPACT - 7.5HP - 60 GAL / SINGLE OR THREE PHASE
The Compact Line was developed with products from 7.5 to 40 hp for companies that are looking for a reliable operation and low investment. Designed opened without enclosures, these compressors can operate 24 hours continuously and offer compressed air with high efficiency. Their compact design allows installation in small places with easy access to all maintenance components. Furthermore, Compact Rotary Screws come with a simple electric starter control that saves time and money during installation and operation. The compact is the solution for those seeking an excellent cost x benefit ratio. Choose yours.

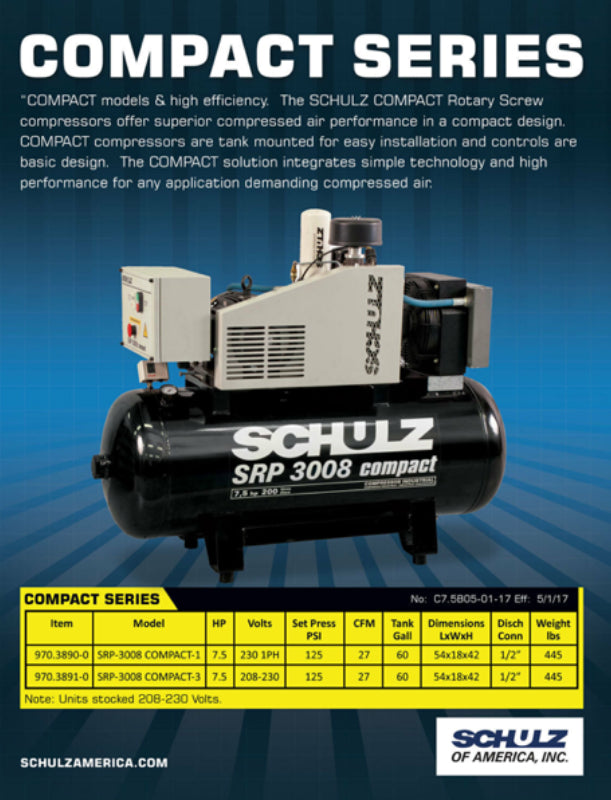

Compact models & high efficiency. The SCHULZ COMPACT Rotary Screw compressors offer superior compressed air performance in a compact design. COMPACT compressors are tank mounted for easy installation and controls are basic designs. The COMPACT solution integrates simple technology and high performance for any application.
| Model | SRP 3008 COMPACT-1 | SRP 3008 COMPACT-3 | SRP 3015 COMPACT II | SRP 3025 COMPACT | SRP 3040 COMPACT |
|---|---|---|---|---|---|
| Free Air @125 PSI (CFM) | 25 | 25 | 51 | 89 | 150 |
| Voltage (V) | 230 | 208-230/460 | 208-230/460 | 208-230/460 | 208-230/460 |
| Free Air @125 psi (l/min) | 722 | 722 | 1,444 | 2,510 | 4,247 |
| Motor Power (kW) | 5.5 | 5.5 | 11 | 18 | 30 |
| Noise Level (dbA) | 83 | 83 | 86 | 86 | 91 |
| Tank Size (gal) | 60 | 60 | 60 | 80 | 120 |
| Discharge Connection (in) | 1/2" | 1/2" | 3/4" | 3/4" | 1" |
| Motor Power (hp) | 7.5 | 7.5 | 15 | 25 | 40 |
| Maximum Operating Pressure (PSI) | 125 | 125 | 125 | 125 | 125 |
| Code | 970.3890-0 | 970.3891-0 | 970.3454-0/F | 970.2840-0 | 970.3233-0 |
Factory Warranty:
2 years on the airend (with proper maintenance)
1 year on all the other components
*OPTIONAL 5 year warranty available - Additional requirements needed, contact Factory for more information
SINGLE PHASE - 970.3890-0
THREE-PHASE - 970.3891-0
(MPN) Manufacturer Part Number - 970.3891-0 / 970.3890-0
