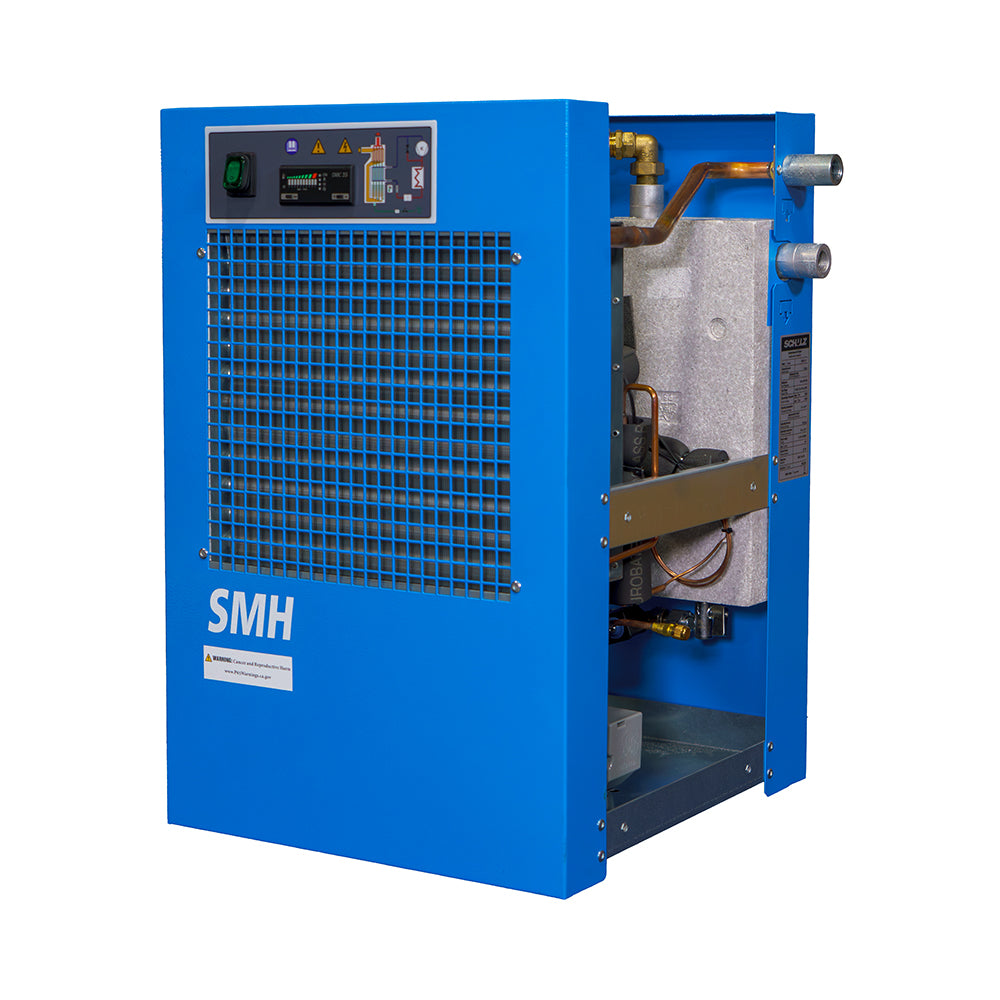

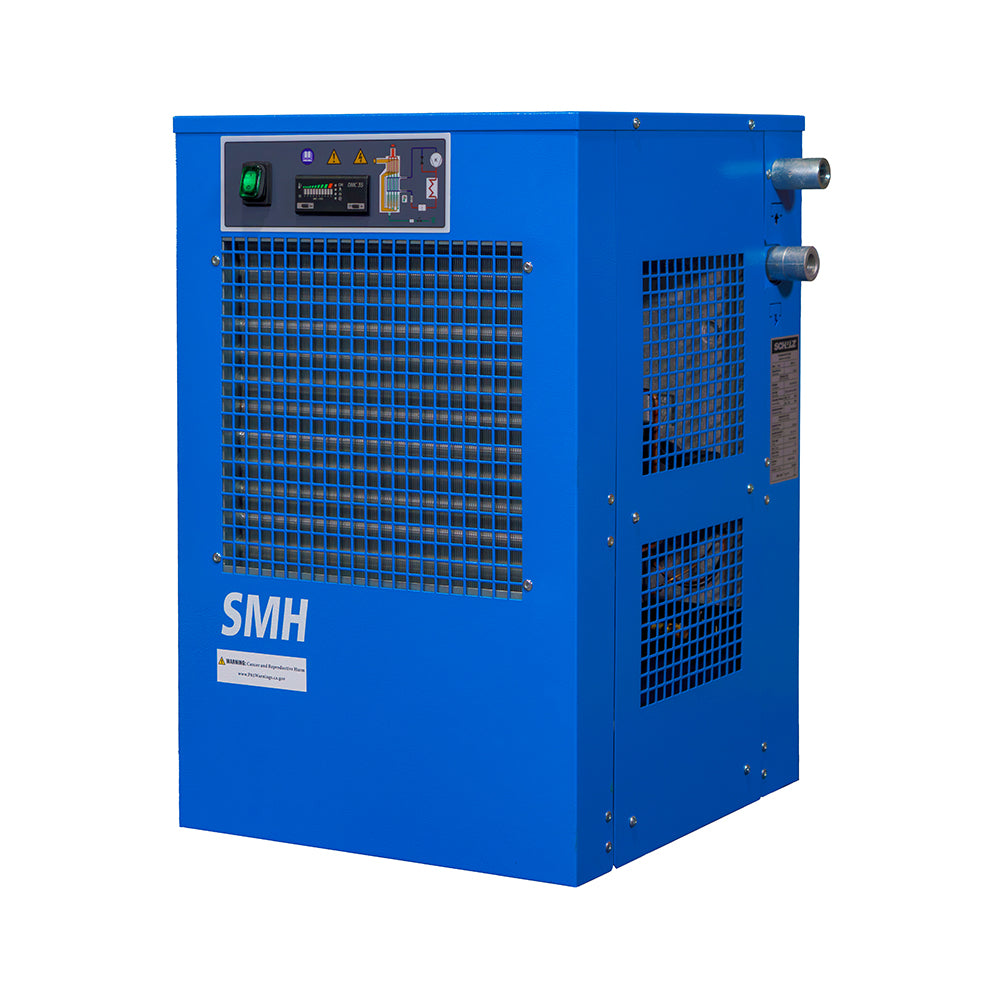

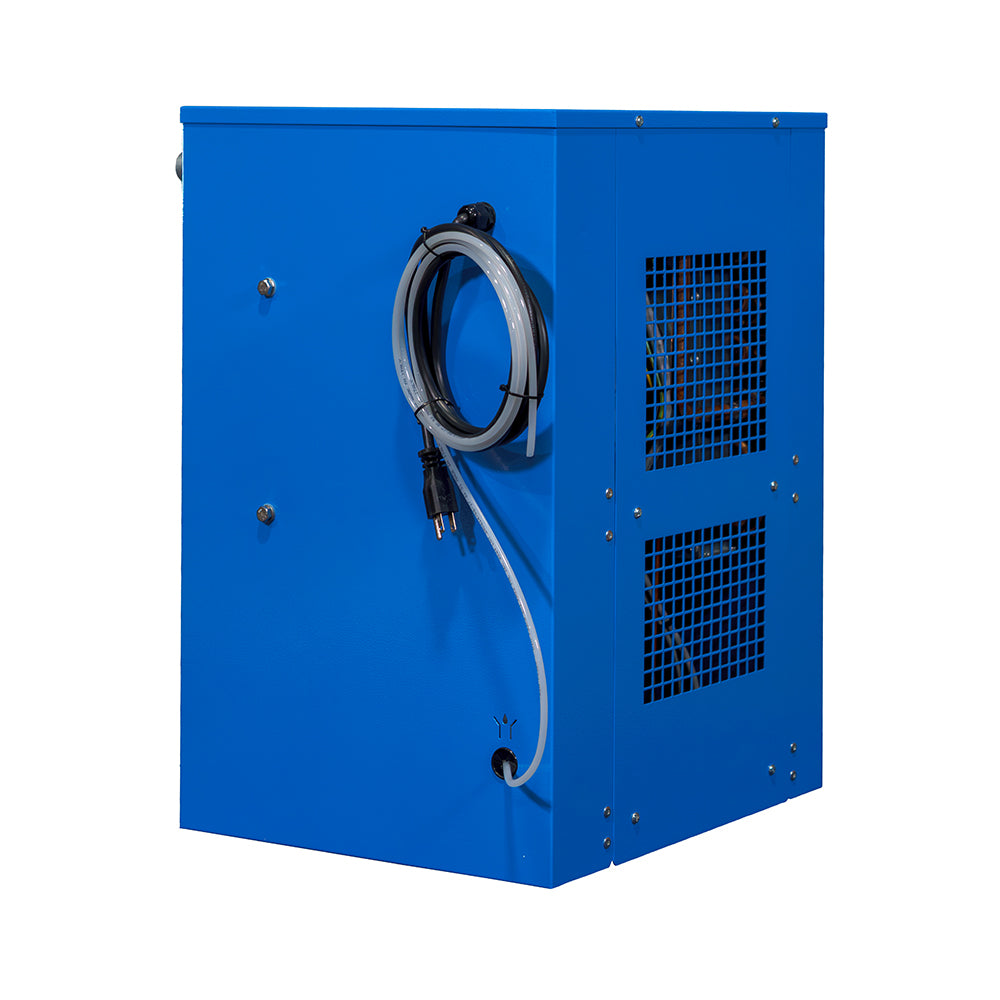

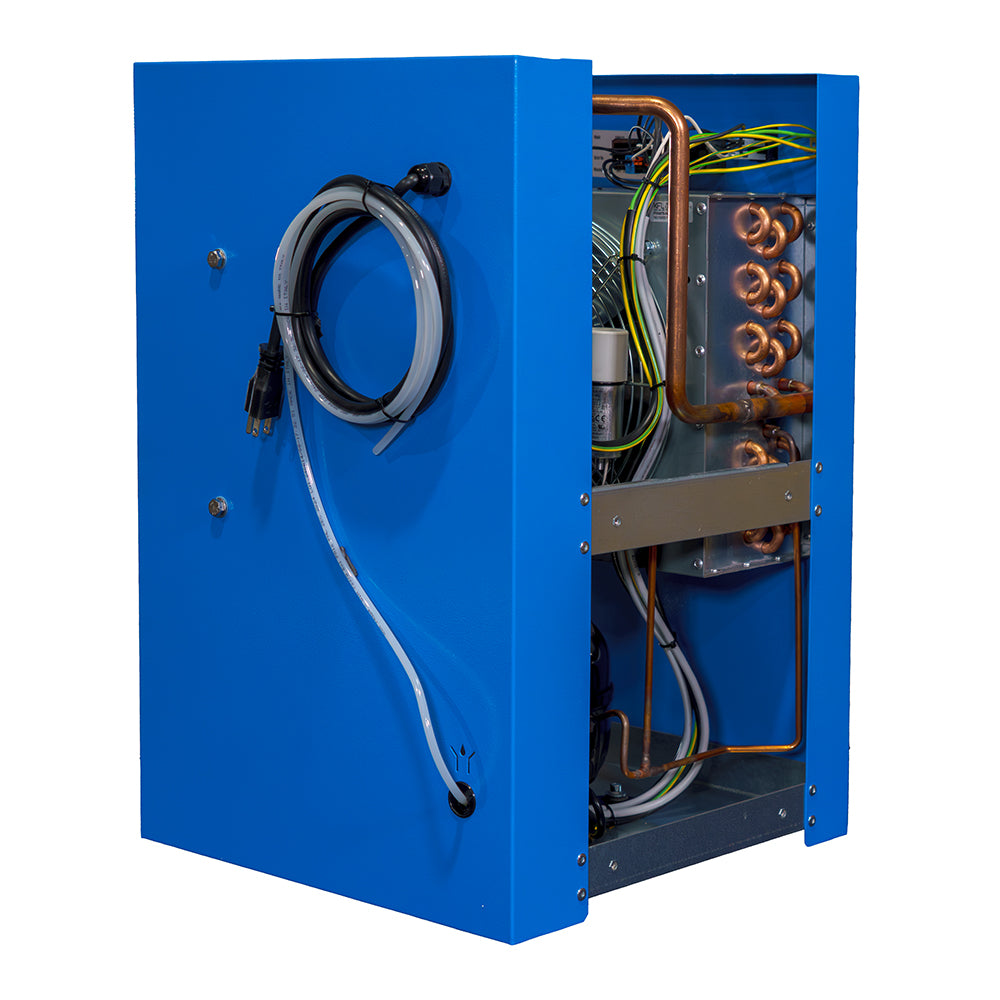

SCHULZ HIGH TEMPERATURE REFRIGERATED AIR DRYER - 30 CFM - SMH-030-UP
SCHULZ SMH HIGH TEMP DRYERS STANDARD FEATURES INCLUDE:
• Built-in aftercooler circuit with a separate drain
• Lower pressure drops

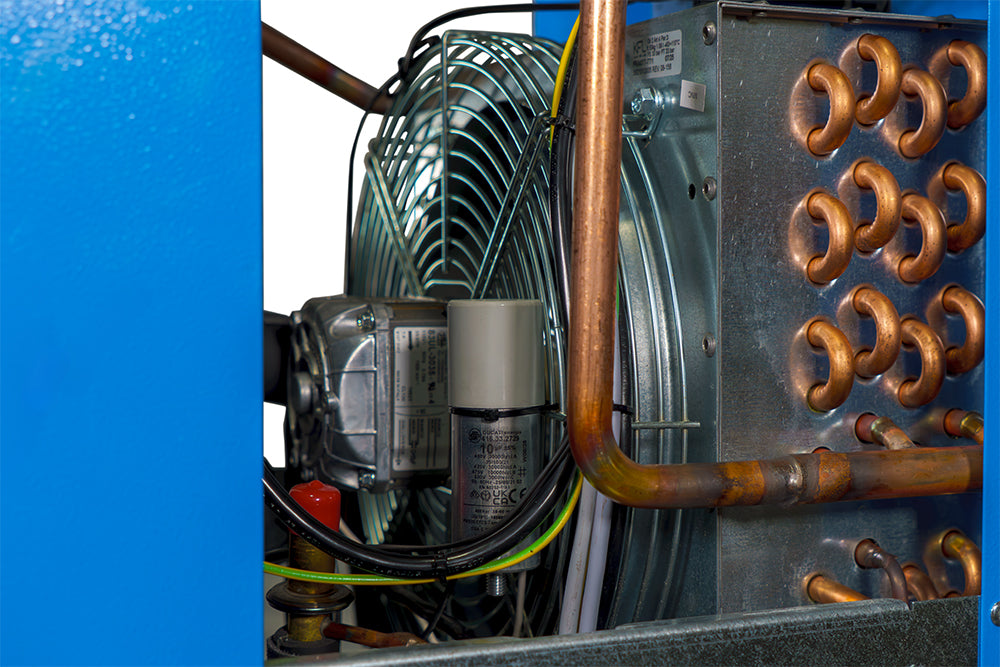

• Energy efficient refrigeration compressors
• AII units run at less than 70 dbA sound levels

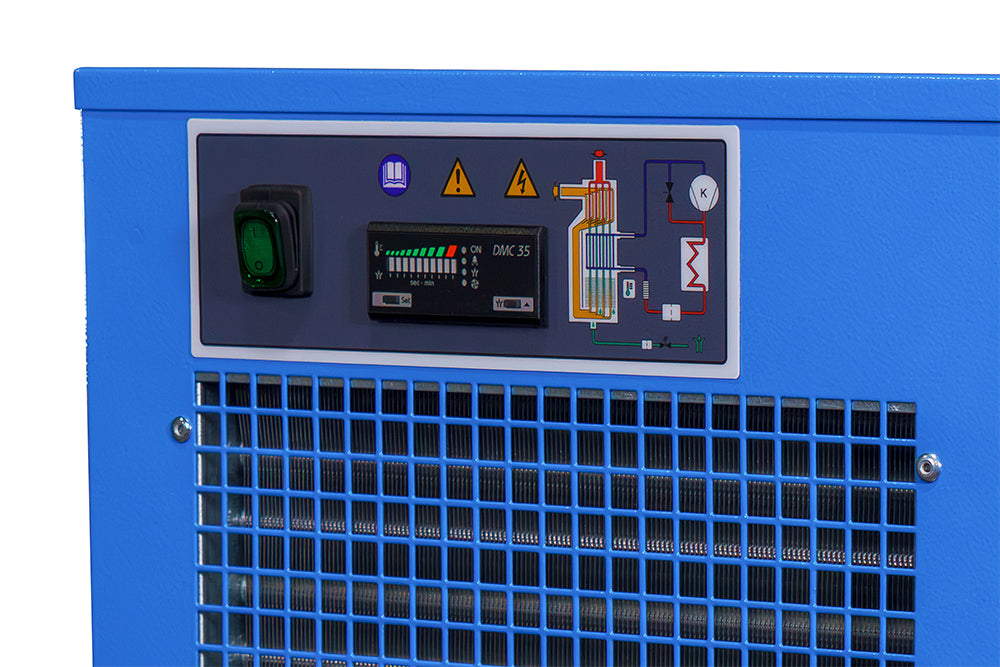

• DMC electronic controllers operate each dryer
• Built-in aftercooler with separate auto drain
• Energy efficient refrigeration compressors
• AII units run at less than 70 dbA sound levels
Comes with ONE YEAR FACTORY WARRANTY*
Pre filter required to validate one year warranty, click HERE to view
Schulz SMH High Temp Dryers eliminate the need for separate aftercooler and moisture separators, conserving valuable floor space. This also means less equipment to install and maintain. Plus, it saves energy normally lost with an aftercooler. With SMH High Temp Dryers it is no longer necessary to upsize the dryer to compensate for. High inlet temperature or high ambient temperature conditions. Schulz SMH dryers are designed to accept up to 194 F inlet air temperatures and operate in 113 F ambient conditions. For proper sizing to required dew points, refer to the Nominal CFM Rating performance table below.
Flow CFM / 30
Connection (in) / 1/2 NPT"- F
Voltage / 115v
Refrigerant Fluid / R134a
Frequency (Hz) / 60
Single Phase, Nominal Voltage 4.7
L x W x H (16.8 x 16.4 x 25.6)"
73 pounds (lb)
(MPN) Manufacturer Part Number - SMH-030-UP
