SCHULZ AIR DRYER/COMPRESSOR WATER SEPARATOR | 1 INCH - 007.0263-NPT

NEW SCHULZ AIR DRYER WATER SEPARATOR

FITS THE FOLLOWING SCHULZ DRYERS
ADS-75

This is an optional, but recommended accessory for your air dryer. Use this for humid environments and any moisture sensitive application. Ensure and extend the life of your dryer and pre-filter with an original SCHULZ water separator!

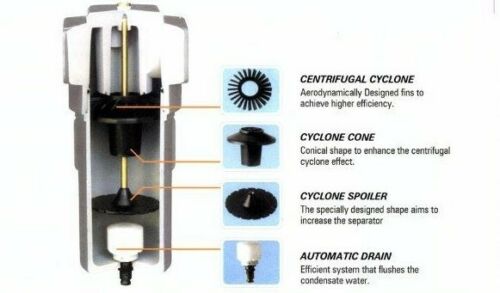

Designed with an efficient cyclone system for condensation separation, this will eliminate any condensation drag in your airflow and assures maximum efficiency.

1" (INCH) NPT CONNECTION
Flow @ 100 PSI - 232.37 CFM
COMP AIR MAX TEMP - 158 DEGREES F.
MIN AIR TEMP - 33.8 DEGREES F.
MAX TEMP AMBIENT - 113 DEGREES F.



Free Factory Shipping / FEDEX GROUND OR UPS GROUND
Shipping weight 9lbs

(MPN) Manufacturer Part Number - 007.0263-NPT
