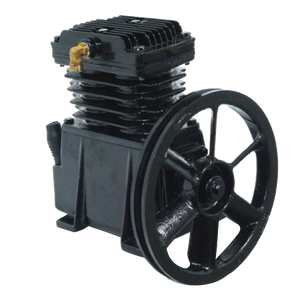

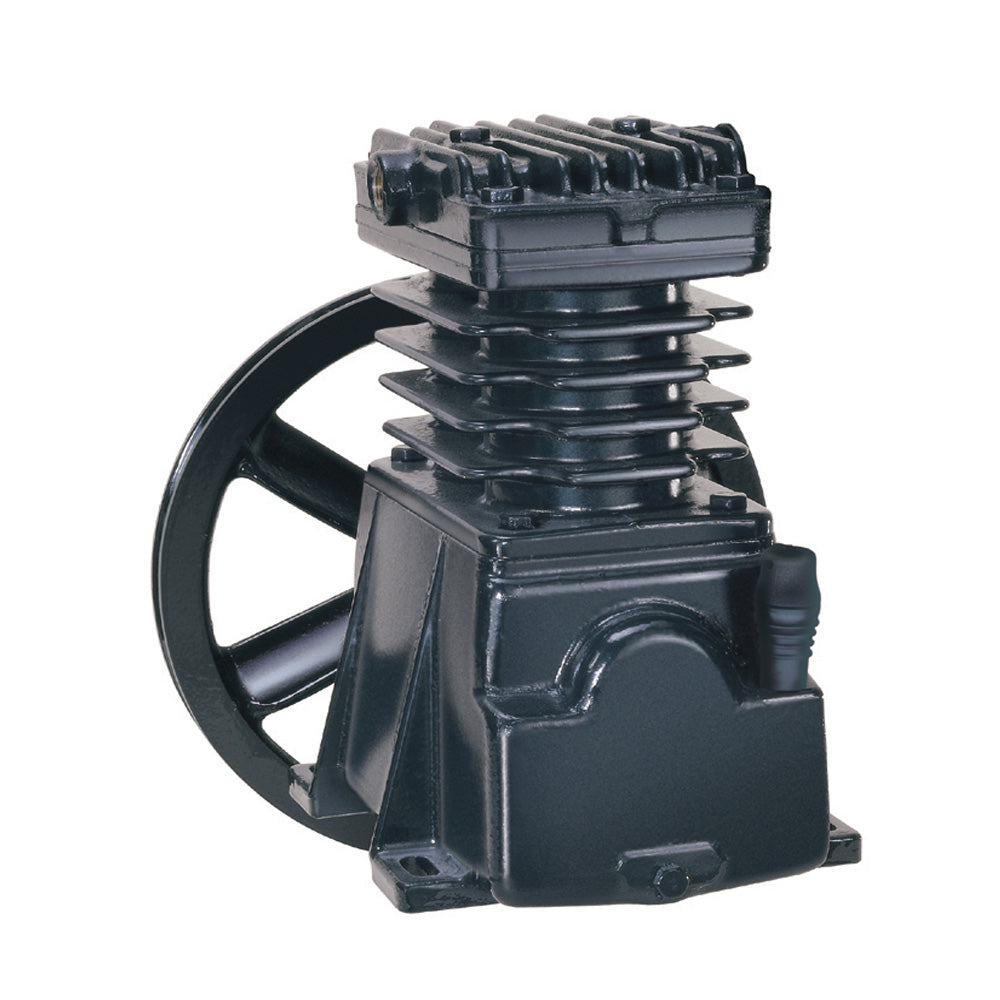

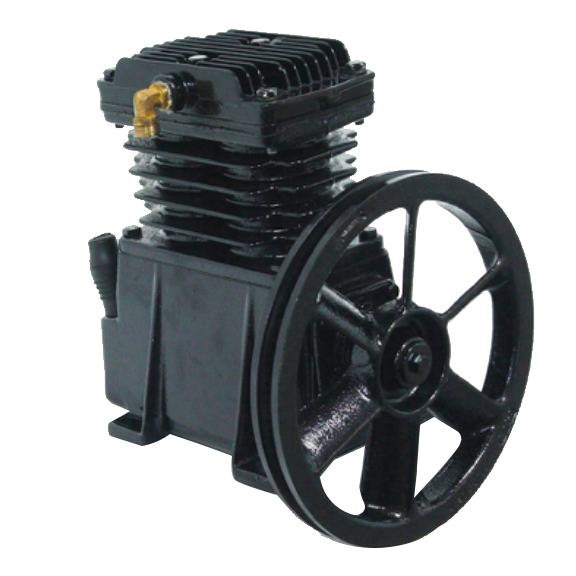

SCHULZ AIR COMPRESSOR PUMP - MSL-10MAX - SINGLE STAGE - 2HP - 931.8090-0
The lubricated compressor pumps of Schulz are versatile and strong. With slotted mounting feet, they can be easily used for assembly on air tanks or as replacement pumps for competitive brands. Produced in cast iron, they ensure reliability and durability for professional and industrial applications. Pumps are available with flows of 5.2 to 80 Cfm (cubic feet/min). To facilitate assembly, pumps are supplied with flywheel and metal intake silencers.
| Code | 931.8090-0 |
|---|---|
| Air Displacement (CFM) | 10 |
| Motor Power (hp) | 2 |
| Motor Power (kW) | 1.5 |
| Maximum Operating Pressure (bar) | 9.7 |
| Maximum Operating Pressure (PSI) | 140 |
| Compressor Unit - No. Stages | 1 |
| Compressor Unit - No. Pistons | 2-L |
BORE: 2 X 2" Small Pump
FACTORY 12 MONTH WARRANTY
(Filter not included with pump purchase)
Industrial quality, true and tested over several years in the market.
Expect a minimum of 5 years of service when properly maintained.
This pump retrofits many brand names on a bolt basis.
You can also drill the base and align it with the current motor.
For this price, it is worth the time and effort to retrofit.
You can use it to a 2 HP - 10 CFM - 125 PSI 810 RPM motor
(MPN) Manufacturer Part Number - 931.8090-0
