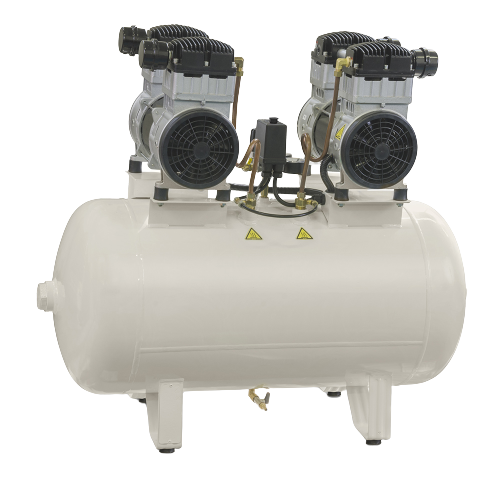

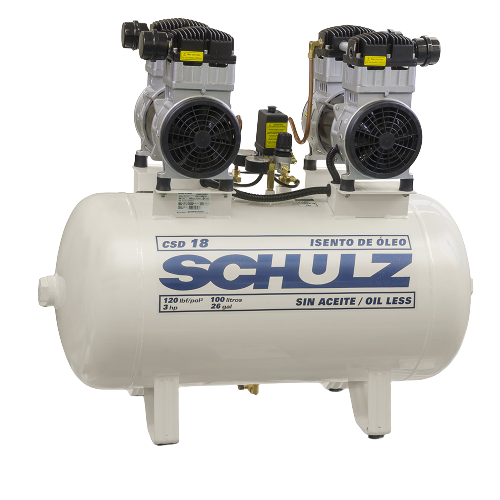

SCHULZ AIR COMPRESSOR OIL LESS - 3HP SINGLE PHASE - 30 GALLON TANK - 220 VOLTS - 931.1316-0
The Oil Less single stage direct drive compressors offer comfort and safety for medical-dental applications, etc. These products have a lower noise level and air tanks with internal antibacterial powder coating. These durable compressors are available in the models of 1, 1.5, 2 and 3 hp. Choose the best product to support your needs.
| Code | 931.1316-0 |
|---|---|
| Air Displacement (CFM) | 18 |
| Air Displacement (l/min) | 510 |
| No. Poles | 4 |
| Motor Power (hp) | 2 x 1.5 |
| Motor Power (kW) | 2 x 1.1 |
| Maximum Operating Pressure (bar) | 8.3 |
| Maximum Operating Pressure (PSI) | 120 |
| Minimum Operating Pressure (bar) | 5.5 |
| Minimum Operating Pressure (psi) | 80 |
| Voltage (V) | 230 |
| Compressor Unit - No. Stages | Single Stage |
| Compressor Unit - No. Pistons | 2 x 2 |
| Tank Size (gal) | 30 - Horizontal |
When the subject is HEALTH - RELIABILITY IS ESSENTIAL.
"Ideal for 6 chairs with vacuum pump or 3 chairs equipped with handpiece, triple syringe and simple suction device. It can also be applied in hospitals, pharmaceutical and food industries, among others."
LOW NOISE - HIGH EFFICIENCY
Features:
Twin aluminum cylinders w/ surface treatment
Tanks internally powder coated w/ antimicrobial paint
Direct coupled motor/pump
Shock absorbers on the pump and tank
Manual ball valve tank drain
Easy Access air filter
Factory 12 Month Warranty
(MPN) Manufacturer Part Number - 931.1316-0
