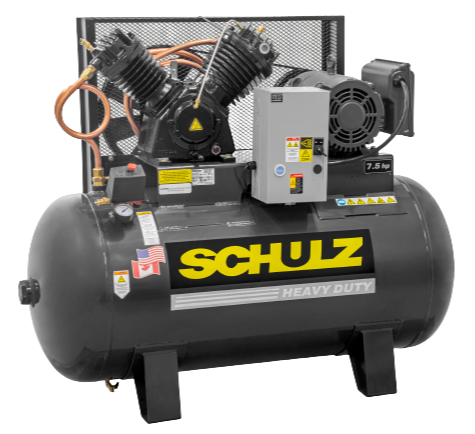

SCHULZ AIR COMPRESSOR - 7.5HP SINGLE PHASE HORIZONTAL 80 GAL TANK - 30CFM - 175 PSI 932.9347-0

V-series compressors are strong and durable equipment. Available in vertical or horizontal tank designs, they operate in low RPMs as two-stage models while using high-quality cast iron blocks. The V-cylinder design has always been associated with the product’s high cooling, generating compressed air with lower temperatures, with increased efficiency. These two-stage models are built with mounted and prewired magnetic starters for safe operation and a simplified, ready-to-use compressor. The ASME certified safety valve and air receiver and high-efficiency motors make Heavy Duty V-Series compressors the best choice for your company.

Powder coated 80 gallons horizontal air tank (ASME CERTIFIED)

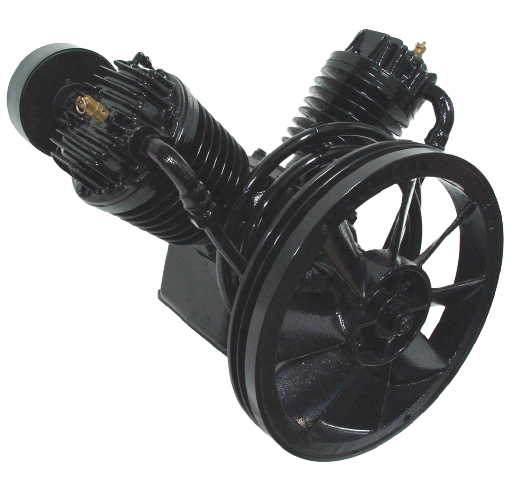

100% Cast iron pump splash lubricated

230 Volts single phase WEG motor

30 cfm displacement, 175 psi

Magnetic starter mounted

High efficiency inter-cooler

625LB

56”x23”x45” LxWxH

Additional Model #s: 7580HV30X-1

*Always consult your electrician for proper installation and proper wiring

Warranty:

2 years on the cast iron pump (with proper maintenance)
1 year on all the other components

(MPN) Manufacturer Part Number - 932.9347-0
