SCHULZ AIR COMPRESSOR - 5HP SINGLE PHASE - 80 GALLON TANK - 20CFM - 175 PSI 932.9361-0

$3,109.00
Unit price per

Shipping calculated at checkout.

The in line L-series compressors are strong, durable equipment with distinguished performance. With vertical or horizontal tank design, these single and two stage products operate with low RPMs with a high-quality cast iron block. The double-supported crankshaft design provides lower vibration and longer bearing life, as well as the modern valve system (reed type) provides extended service life and excellent product efficiency. Mounted and wired magnetic starters, provide convenience and safety in operation with a ready to use system. The ASME certified safety valve and air tank as well as high efficiency motors make Heavy Duty L-Series compressors the best choice for your company.

Powder-coated 80 gallons vertical air tank (ASME CERTIFIED)

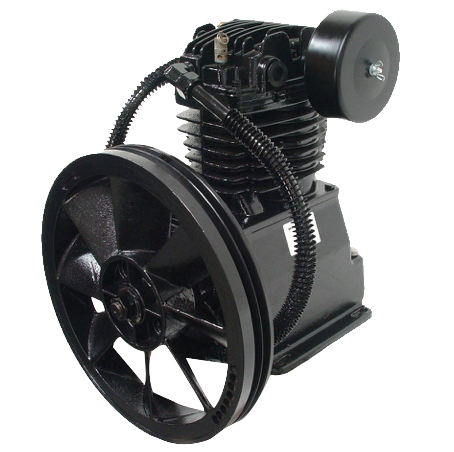

100% Cast iron pump splash lubricated, Low RPM runs quiet and cooler for long-lasting durability

230 Volts single phase WEG motor

20 cfm displacement, 175 psi

Magnetic starter mounted

High-efficiency inter-cooler

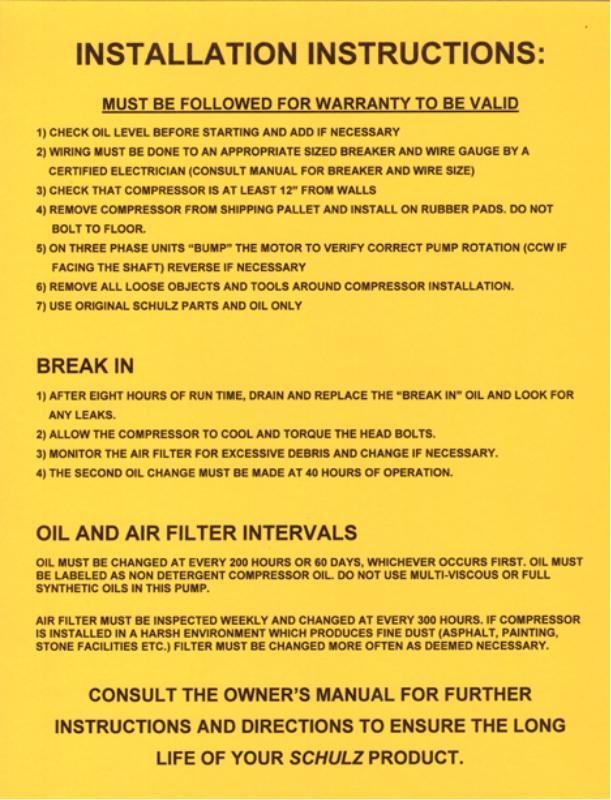

*Always consult your electrician for proper installation and proper wiring

615lbs

34” x 25” x 78” LxWxH

Additional Model #s: 580VL30X-1

Warranty:

2 years on the cast iron pump (with proper maintenance)

1 year on all the other components

(MPN) Manufacturer Part Number - 932.9361-0
