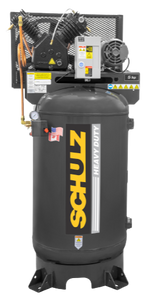

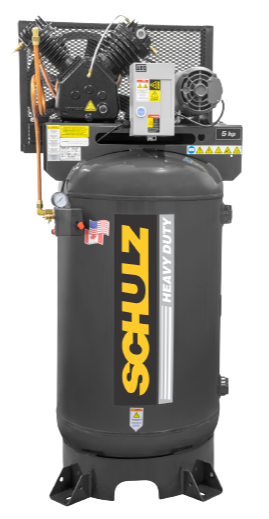

SCHULZ AIR COMPRESSOR - 5HP- SINGLE PHASE - 80 GALL VERTICAL - 20CFM - 175 PSI 932.9339-0

SCHULZ AIR COMPRESSOR 5HP SINGLE PHASE 230 VOLTS 80 GALLONS VERTICAL TANK

V-series compressors are strong and durable equipment. Available in vertical or horizontal tank designs, they operate in low RPMs as two stage models while using high-quality cast iron blocks. The V-cylinder design has always been associated with the product’s high cooling, generating compressed air with lower temperatures, with increased efficiency. These two stage models are built with mounted and prewired magnetic starters for safe operation and a simplified, ready to use compressor. The ASME certified safety valve and air receiver and high efficiency motors make Heavy Duty V-Series compressors the best choice for your company.

Powder coated 80 gallons vertical air tank (ASME CERTIFIED)

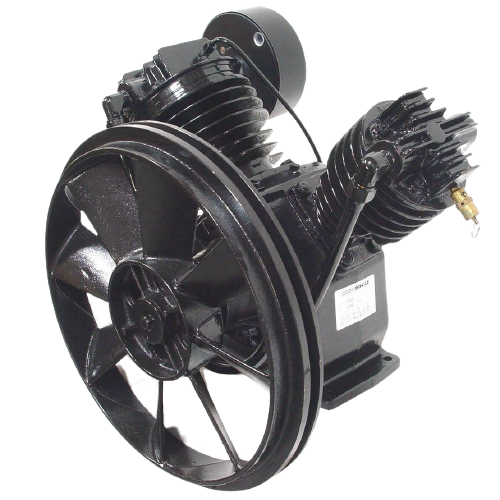

100% Cast iron pump splash lubricated
5HP 230 Volts single phase WEG motor
20 cfm displacement, 175 psi
Magnetic starter mounted
High efficency inter-cooler
Tank Outlet ½”
515lbs
32” x 25” x 78” LxWxH

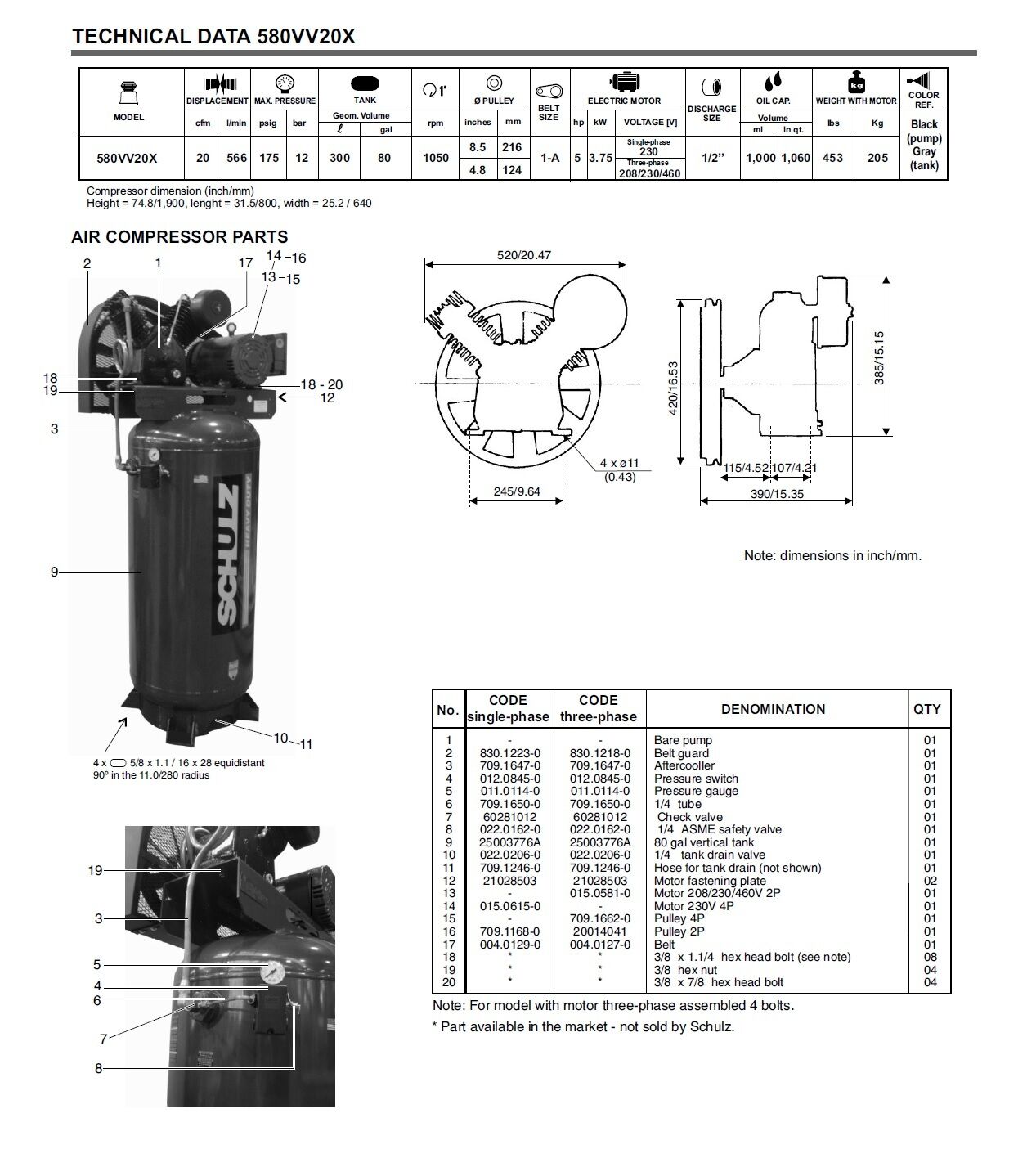

Additional Model Numbers: 580VV20X-1

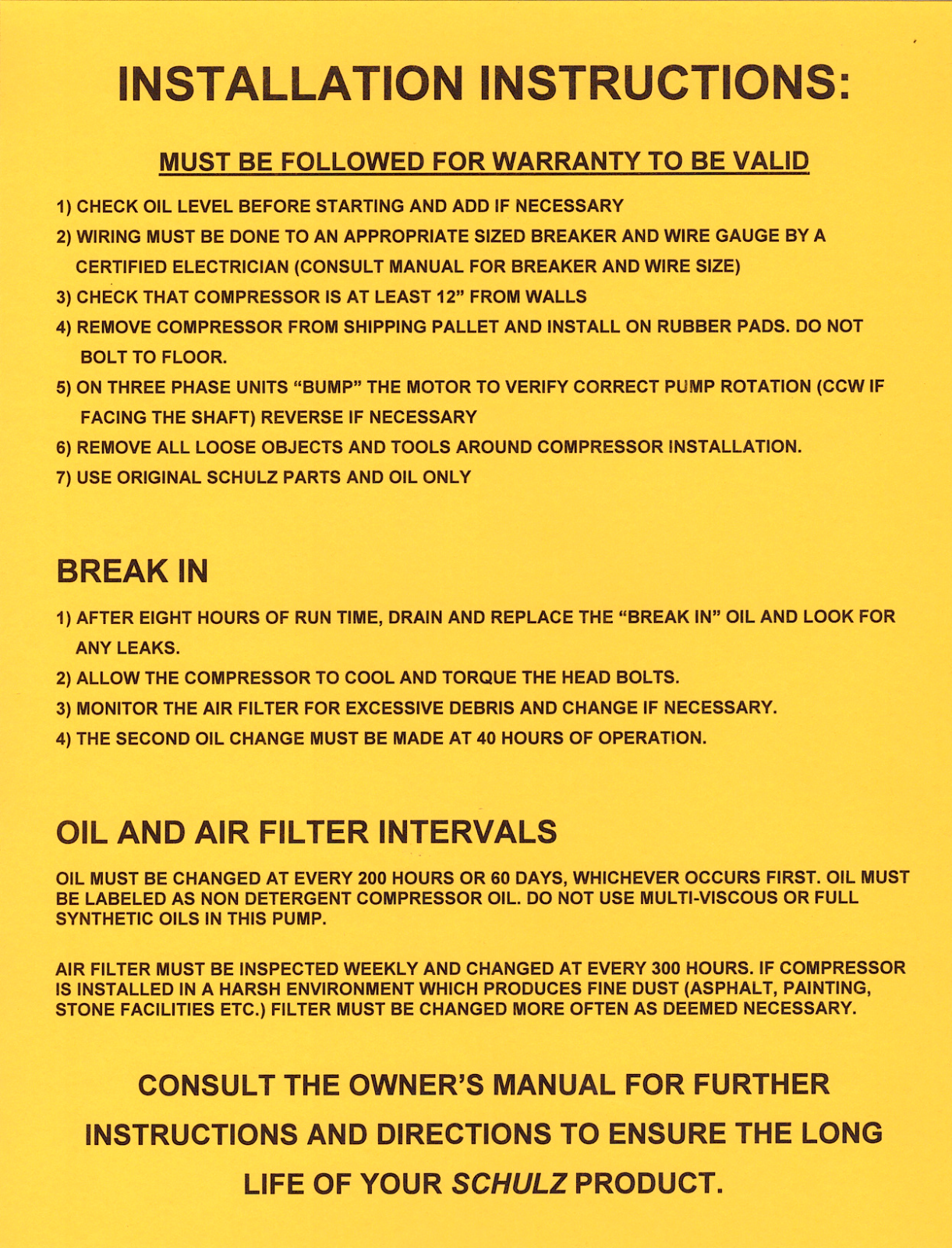

*Always consult your electrician for proper installation and proper wiring


Warranty:
2 years on the cast iron pump (with proper maintenance)
1 year on all the other components

(MPN) Manufacturer Part Number - 932.9339-0
