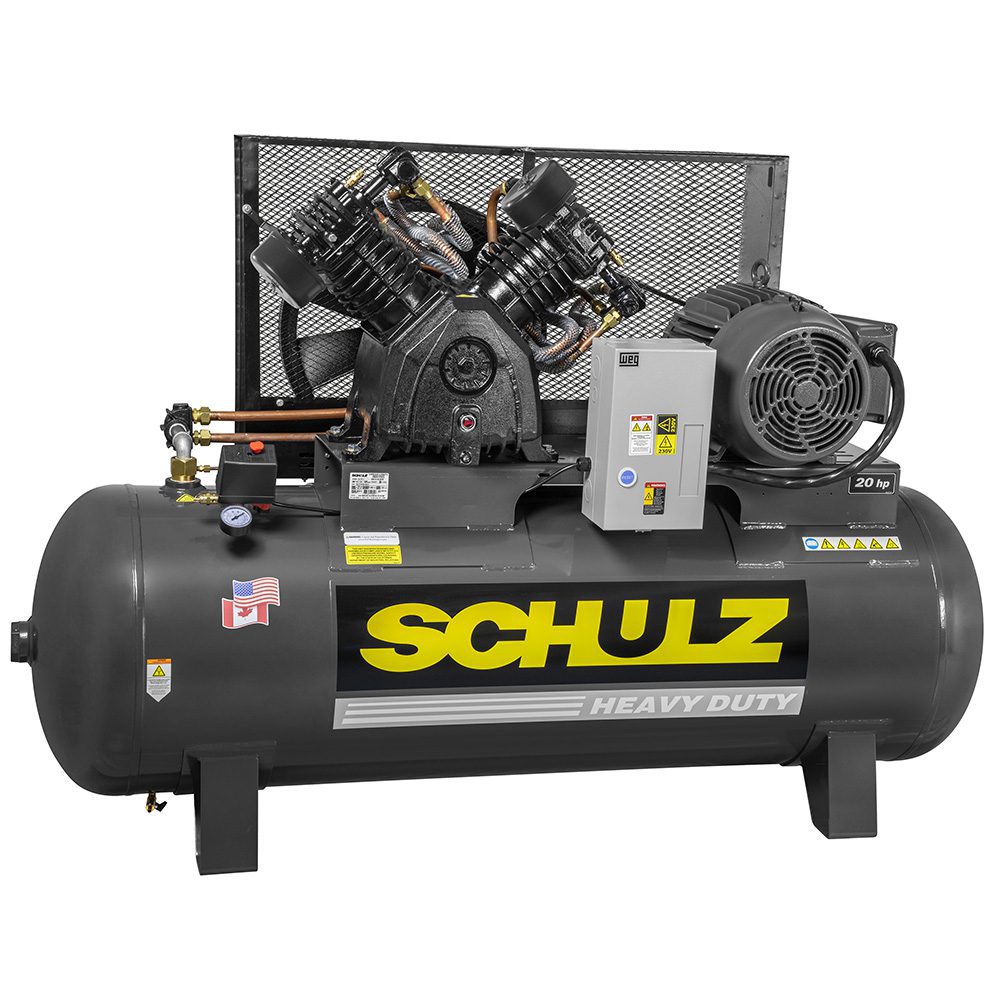

SCHULZ AIR COMPRESSOR - 20HP THREE PHASE - 120 GALLONS HORIZONTAL TANK - 208-230-460 VOLTS 934.7452-0
SCHULZ AIR COMPRESSOR - 20HP THREE PHASE - 120 GALLONS HORIZONTAL TANK - 208-230-460 VOLTS 934.7452-0
SCHULZ AIR COMPRESSOR - 20HP THREE PHASE - 120 GALLONS HORIZONTAL TANK - 208-230-460 VOLTS 934.7452-0

SCHULZ AIR COMPRESSOR - 20HP THREE PHASE - 120 GALLONS HORIZONTAL TANK - 208-230-460 VOLTS 934.7452-0

Shipping calculated at checkout.

The in line L-series compressors are strong, durable equipment with distinguished performance. With vertical or horizontal tank design, these single and two stage products operate with low RPMs with a high-quality cast iron block. The double-supported crankshaft design provides lower vibration and longer bearing life, as well as the modern valve system (reed type) provides extended service life and excellent product efficiency. Mounted and wired magnetic starters, provide convenience and safety in operation with a ready to use system. The ASME certified safety valve and air tank as well as high efficiency motors make Heavy Duty L-Series compressors the best choice for your company.



Powder coated 120 gallon horizontal air tank (ASME CERTIFIED)

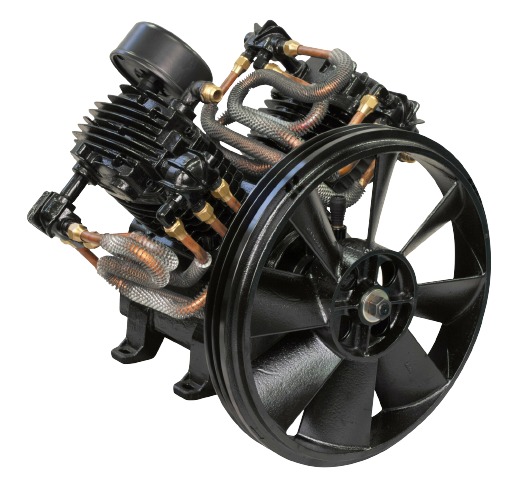

100% Cast iron pump splash lubricated

208 230 460 Volts three phase WEG motor

80 cfm displacement, 175 psi

Magnetic starter mounted

High efficiency inter-cooler

844lb

78” x 26” x 58” LxWxH

Additional Model #s: 20120HLV80BR

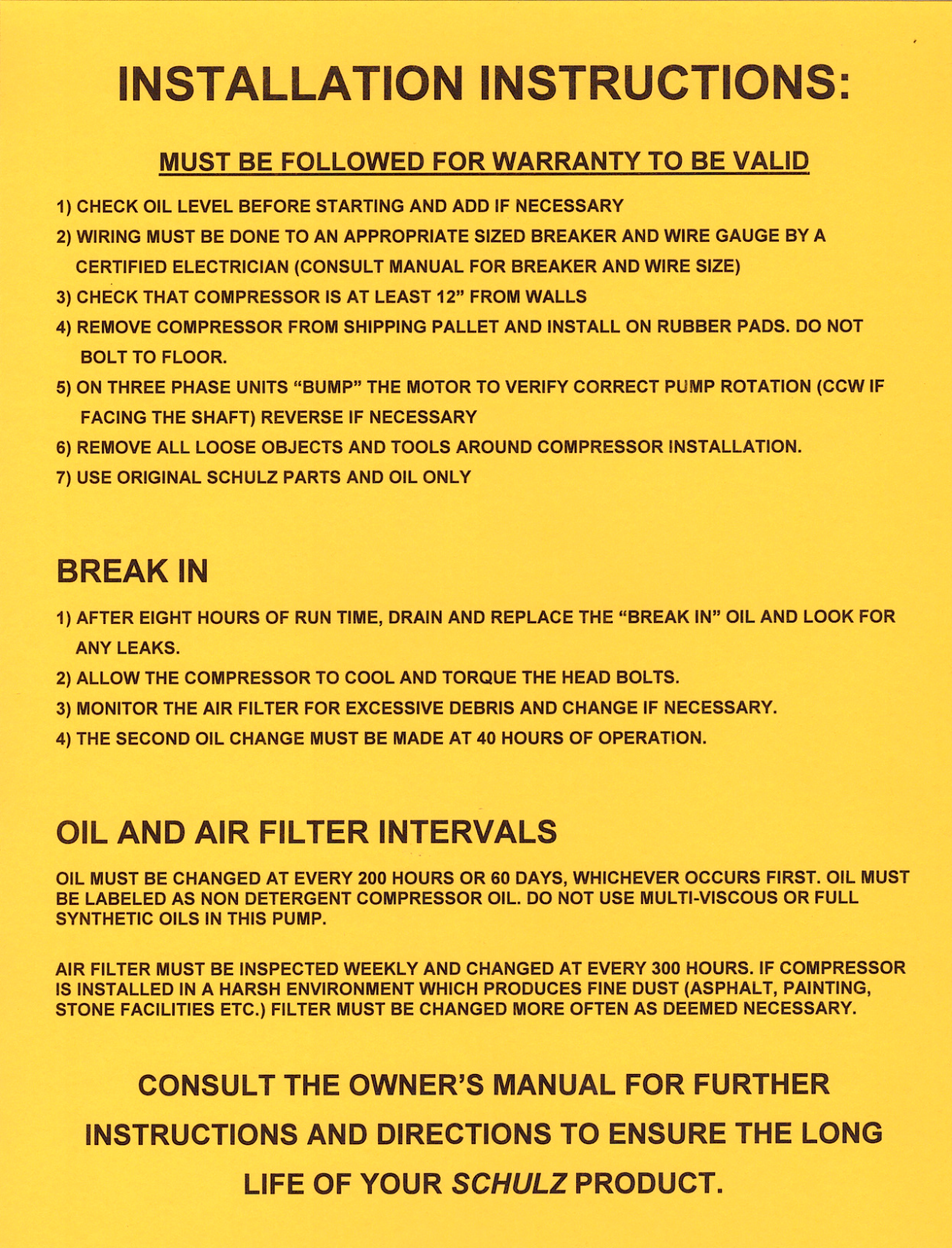

*Always consult your electrician for proper installation and proper wiring




Warranty:

2 years on the cast iron pump (with proper maintenance)

1 year on all the other components



(MPN) Manufacturer Part Number - 934.7452-0
