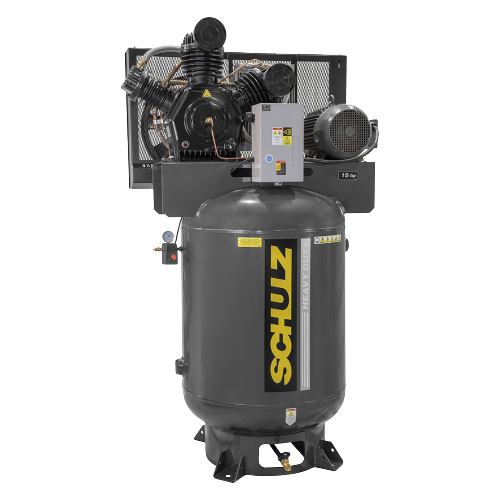

SCHULZ AIR COMPRESSOR - 15HP THREE PHASE - "LOW BOY" 120 GALLONS VERTICAL TANK - 208-230-460 VOLTS 932.9368-0

V-series compressors are strong and durable equipment. Available in vertical or horizontal tank designs, they operate in low RPMs as two-stage models while using high-quality cast iron blocks. The V-cylinder design has always been associated with the product’s high cooling, generating compressed air with lower temperatures, with increased efficiency. These two-stage models are built with mounted and prewired magnetic starters for safe operation and a simplified, ready-to-use compressor. The ASME certified safety valve and air receiver, and high-efficiency motors make Heavy Duty V-Series compressors the best choice for your company.

Powder-coated 120 gallons vertical air tank (ASME CERTIFIED)

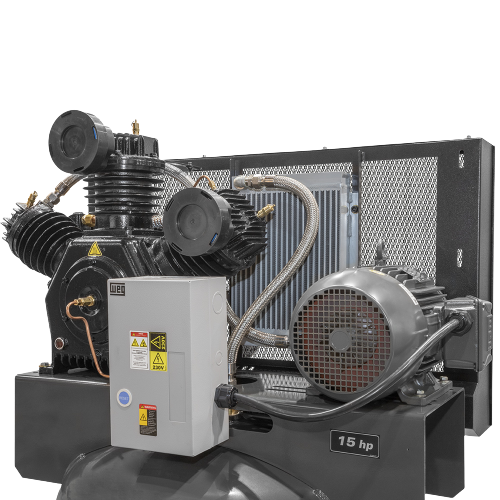

100% Cast iron 3 cylinders to pump splash lubricated, Low RPM runs quiet and cooler for long-lasting durability

15HP 208 230 460 Volts three-phase WEG motor

60 cfm displacement, 175 psi

Magnetic starter mounted

High-efficiency inter-cooler

938lbs

49”x 30”x 79” LxWxH

Additional Model #s: 15120VW60X-3

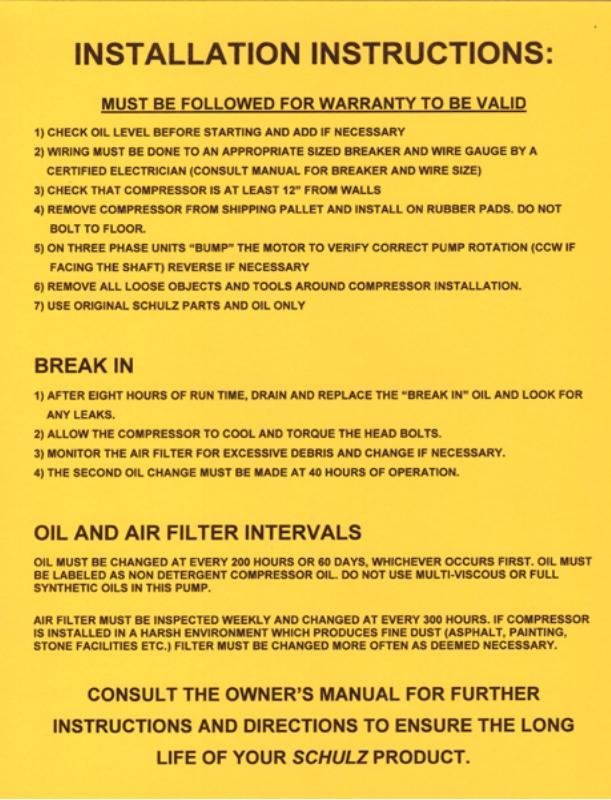

*Always consult your electrician for proper installation and proper wiring

Warranty:

2 years on the cast iron pump (with proper maintenance)

1 year on all the other components

(MPN) Manufacturer Part Number - 932.9368-0
